Axel Joost Elektronik, Mini Safety Box module

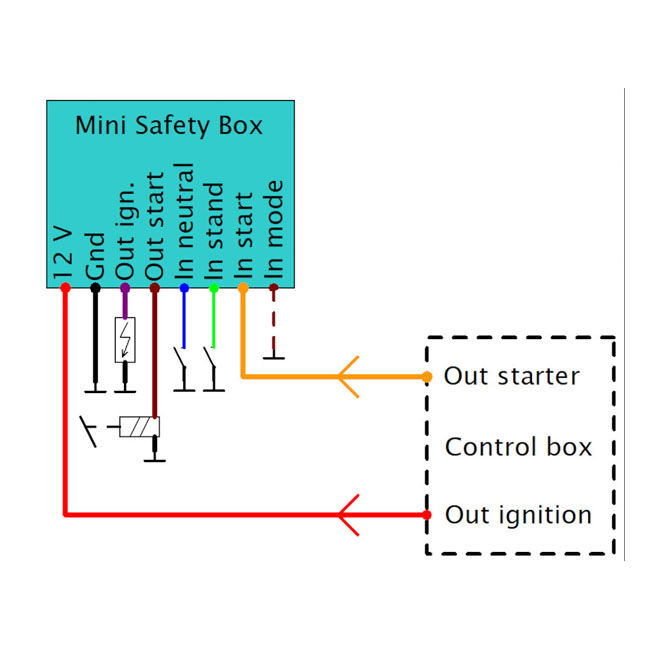

This safety module checks the neutral and sidestand/jiffy switch inputs, to enable or disable the ignition or starter motor. The ignition remains on when the side stand is out, so the bike can be started. But when the bike is put in gear the ignition will be killed if the side stand is not in. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: Black ABS waterproof molded - Input voltages range: 7 - 18 Volt - Connections: Inputs 0.14mm², Outputs 0.5 mm² - Max. Output current: 5 Ampere for brake and indicator outpus - Maximum ambient temperature: 80 degrees Celsius
Fits: >
Fits: >
