Axel Joost Elektronik, Flasher Booster

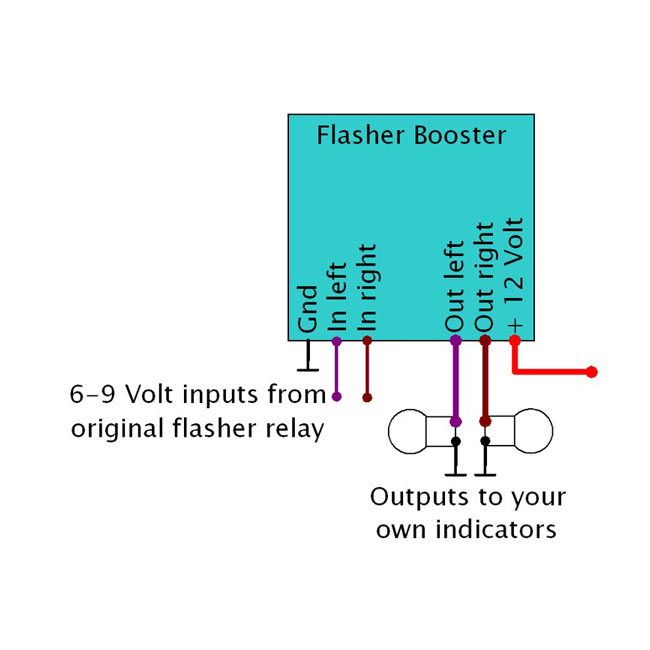

Some late model bikes have the LED converter built into the turn signal relay. Sometimes this results in a turn signal voltage between 6 and 9 Volt. This turn signal booster increases these low voltages from the OEM flasher relay to the required 12 Volt and is installed between the OEM turn signal relay and the aftermarket turn signals. The integrated 0.8W load equalizer ensures a correct flashing rate for most bikes. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: Shock resistant ABS waterproof molded - Supply voltage range: 6 - 20 Volt - Connections: Inputs 0,14 mm², Outputs 0,5 qmm - Maximum current: 5 Ampere per output - Maximum ambient temperature: 80 degree Celsius Note: When the flasher frequency is still too high after the installation, you will need to wire 2 resistors between the 2 inputs and ground.

Fits: >

Fits: >
